lpbudgie replied the topic: Re: MGB Warpath ... Gas Rigger / rigging and set up info

Your like me Scotty love the riggers . guys you can get the warpath in kit form is that right as it would be cheaper to send and after my backlash i would like a wooden rigger to build and whats its cost thanks.
Len.
And thanks for the detailed thread Scott it will help me allot
#15275

Please Log in or Create an account to join the conversation.

Canadian Hot Rod RC Boats replied the topic: Re: MGB Warpath ... Gas Rigger / rigging and set up info

lpbudgie wrote:
they sell for 199.00 plus shipping

www.modelgasboats.com/Magazine...Warpath_Rigger/

Zoom Zoom .....
Toy Boats Toy Boats

Misty Creek Boats
www.youtube.com/channel/UCjwPZIU4nBUUk1CG0xf3TnQ
#15276

Please Log in or Create an account to join the conversation.

Scott replied the topic: Re: MGB Warpath ... Gas Rigger / rigging and set up info

Have decided because of the shorter and stiffer A/V mounts used in this build along with the fact starter end mounts ended up being so close to bulkhead that just maybe not pushing on motor but strut that Square Drive was better suited in this instance. ( Another personal choice, Compression collet with a welded stub or square drive is just fine ) this case being parts and pieces too do square were on hand followed my instinct.

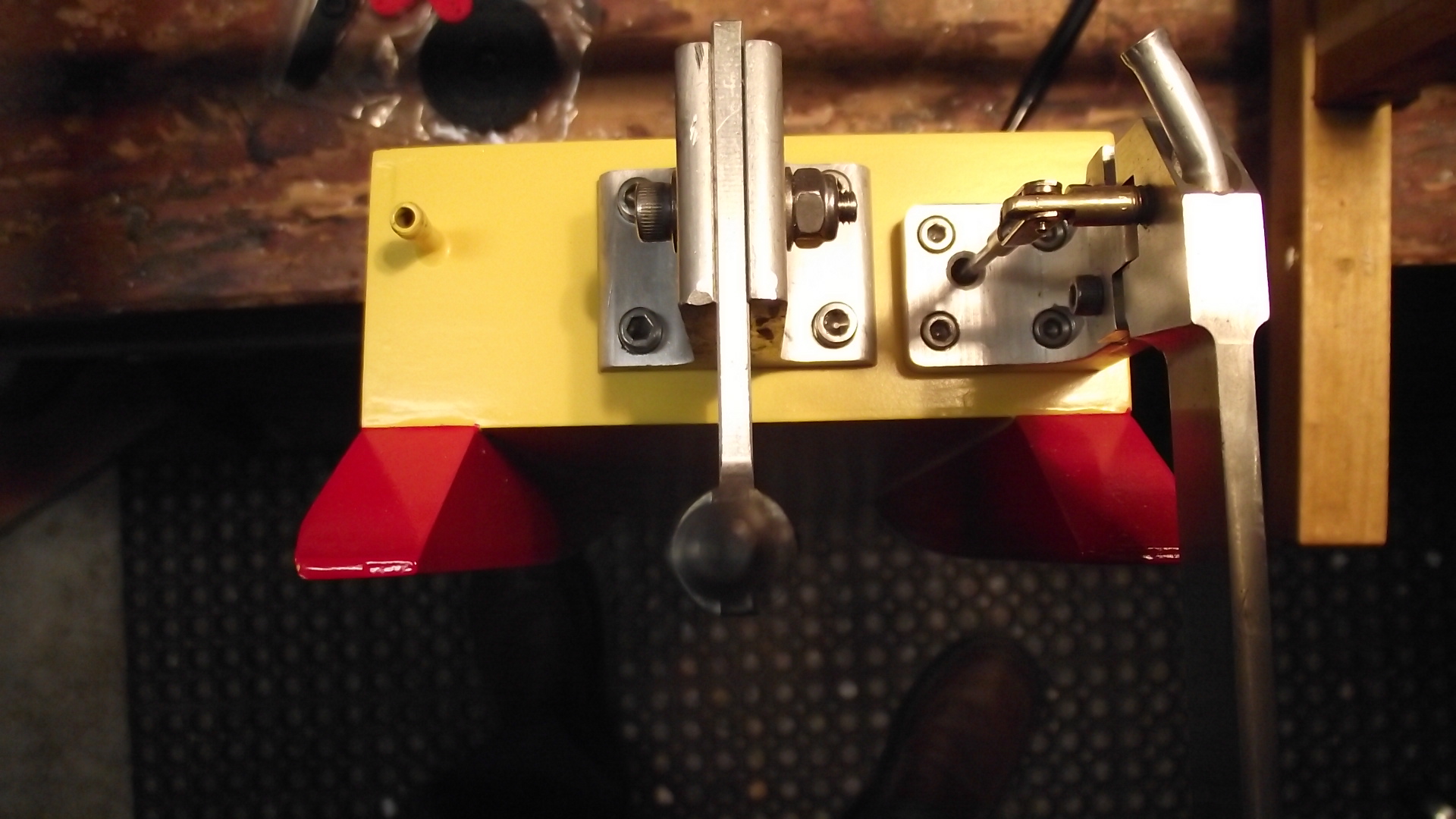

Drive / Steering hardware all mounted ....

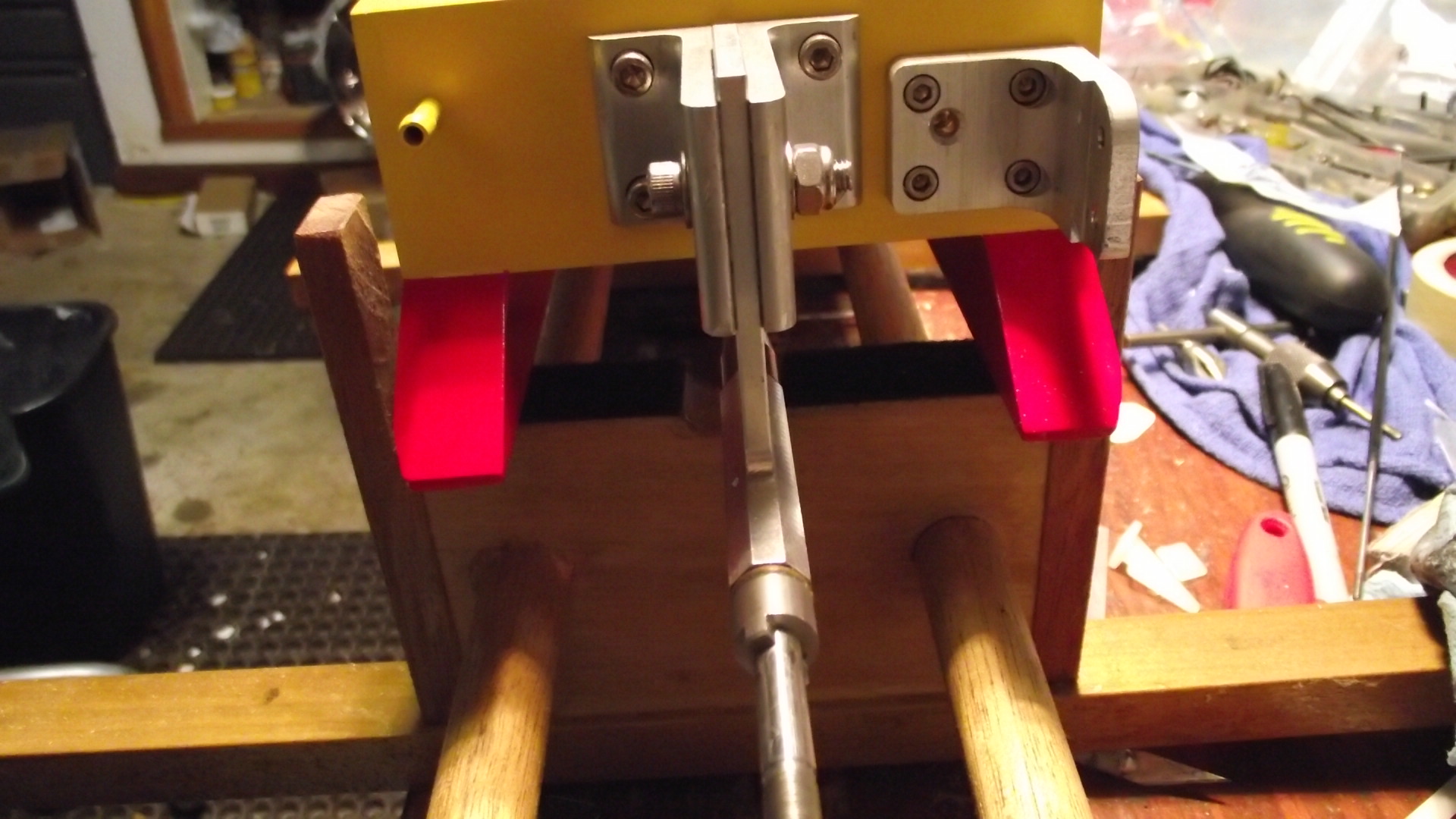

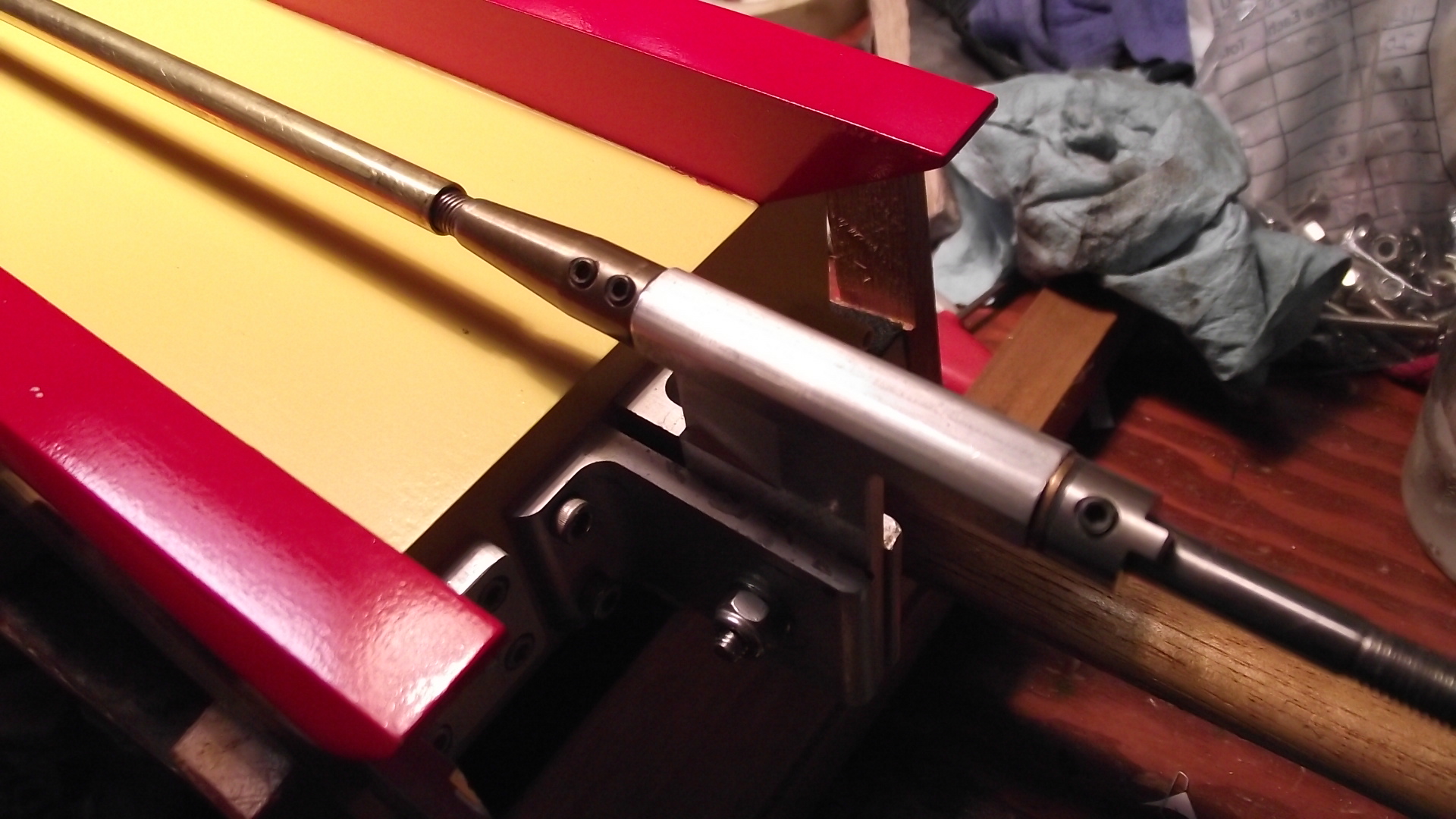

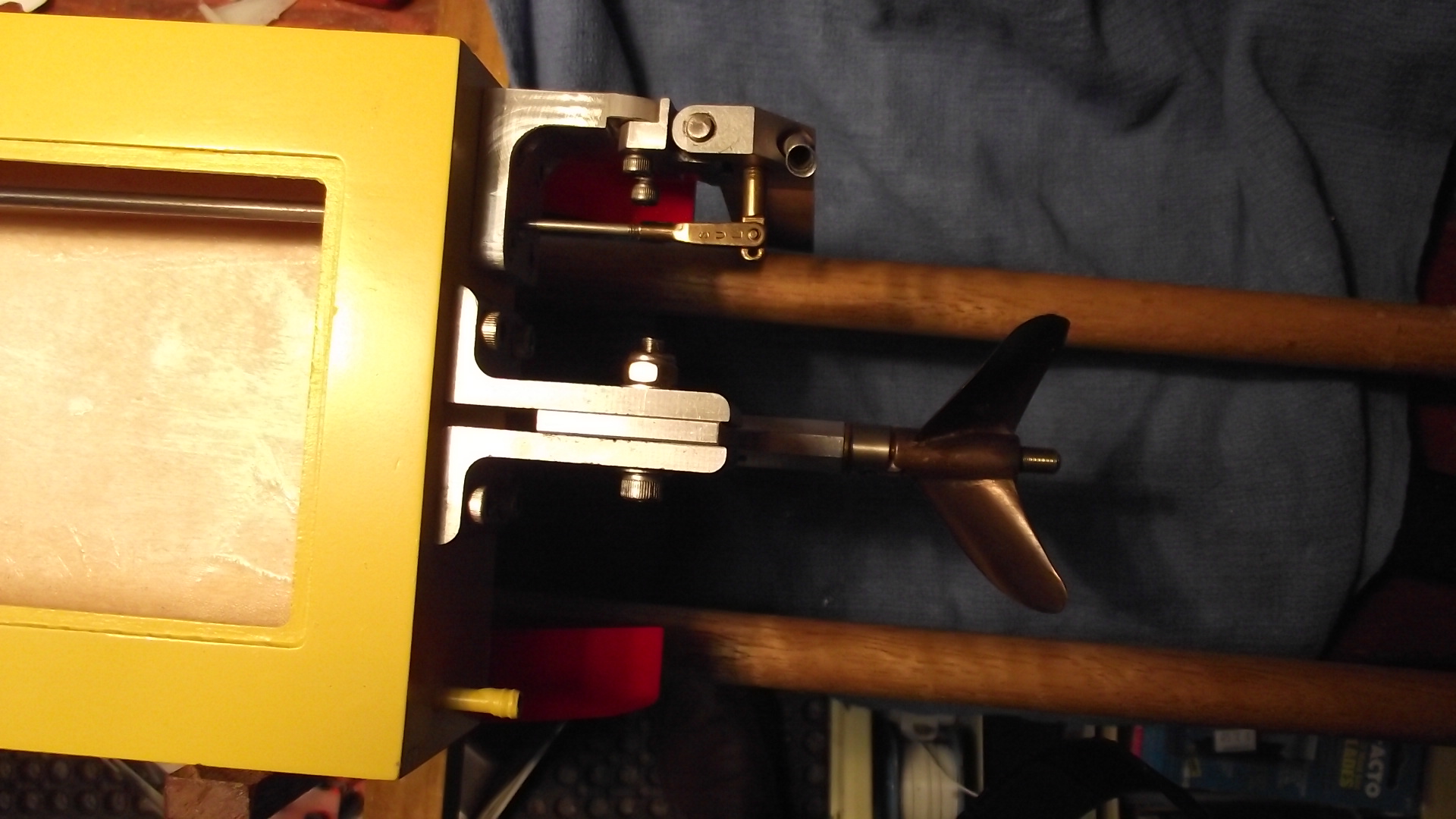

Strut used a slightly shortened Speedmaster extended so use of a Octura stub shaft and solder to cable flex ferrel would fit. 5/16" .029" wall stuffing tube cut to length and hand bent for angle also fitted.

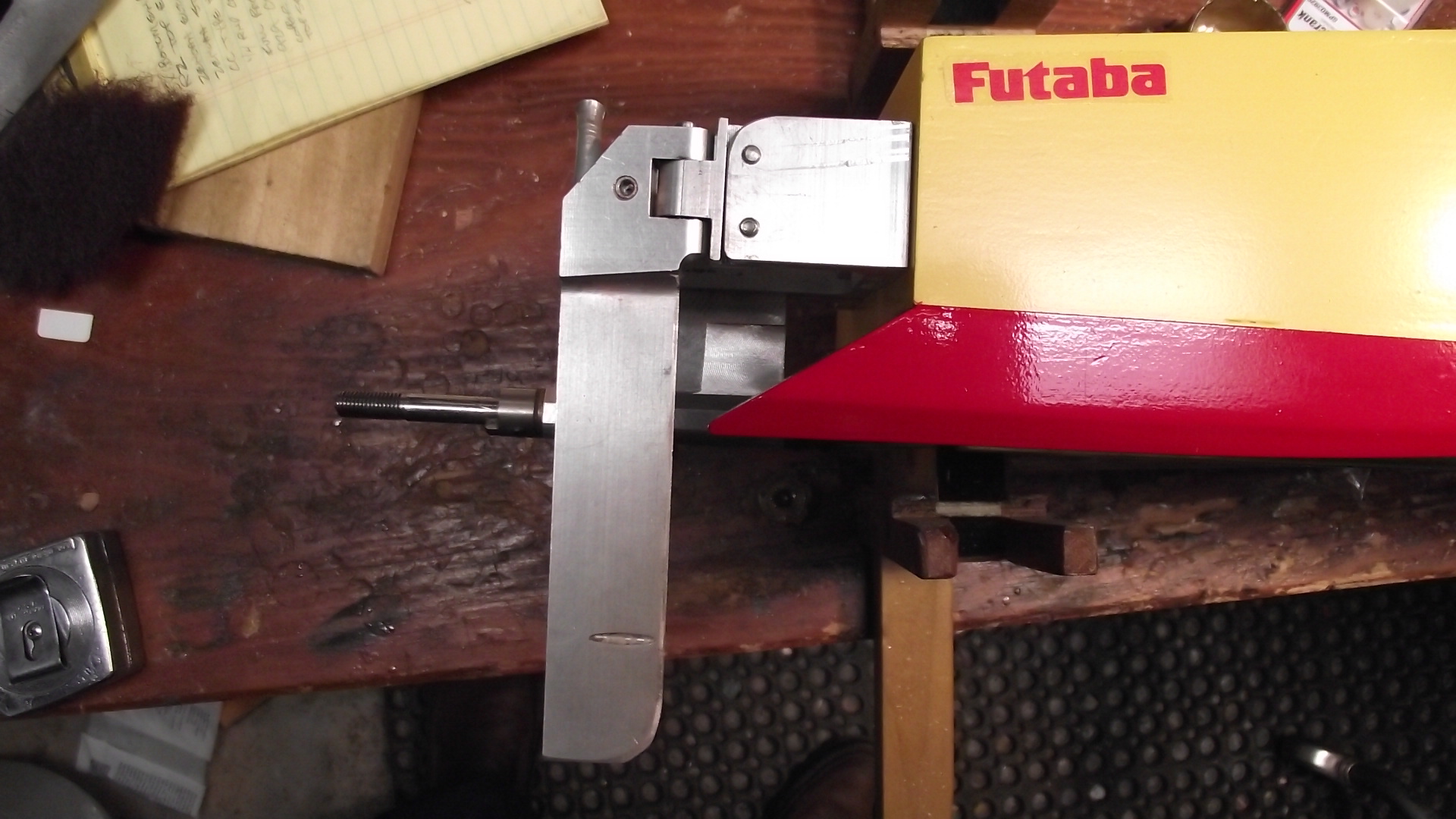

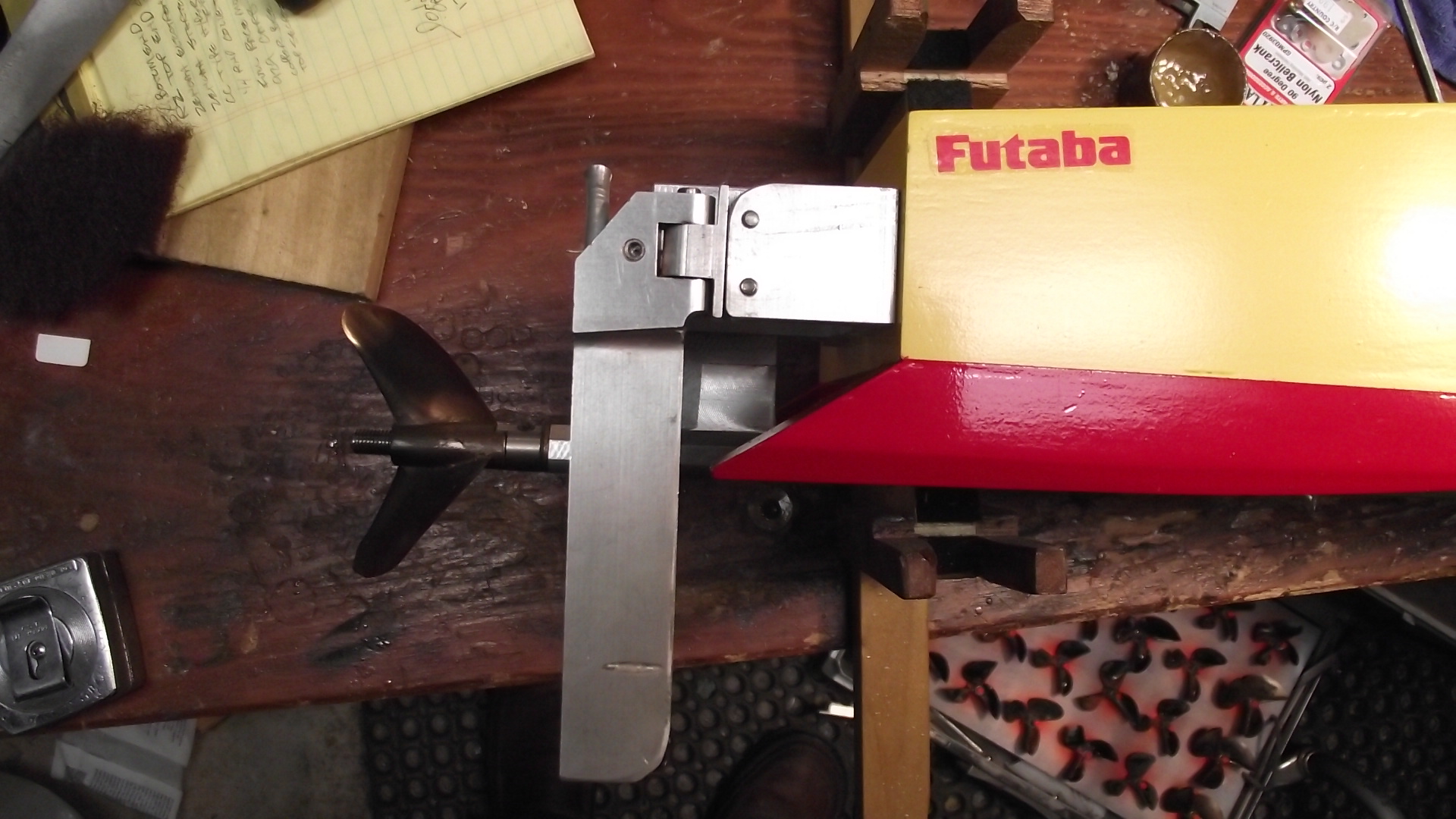

Rudder used a 10+ year old ... "Don't laugh" ... J&G .21 size long blade nitro rudder. ( Figuring hull is small, turn fin is small ... so lets stay minimal drag all around )







To be continued .....

2 stroke Engine Tech of 30+ years, Prop tweeker, Chronic tinkerholic, Home of Motor Heads RC Racing Engines ...
8 time NAMBA National 6 lap heat racing record holder.
#15284

Please Log in or Create an account to join the conversation.

INEEDSPOTS replied the topic: Re: MGB Warpath ... Gas Rigger / rigging and set up info

is it the picture, or do you have the strut offset to the left?

Team COR-TROL Racing - The NETWORK

IMPBA Twin LSG Rigger 1/3 Mile 2-Lap National Record Holder
IMPBA OFFICIAL 12 sec lap 1/3 mile Gas Cat
IMPBA OFFICIAL 75+mph SAW Gas Cat

CC Racing Engines.. Shocker Propworks
#15287

Please Log in or Create an account to join the conversation.

lpbudgie replied the topic: Re: MGB Warpath ... Gas Rigger / rigging and set up info

Canadian Hot Rod RC Boats wrote:Now thats a cheap kit i will give Marc a email after his holiday thanks for that
#15288

Please Log in or Create an account to join the conversation.

Scott replied the topic: Re: MGB Warpath ... Gas Rigger / rigging and set up info

INEEDSPOTS wrote:
Just an optical thing being camera lens is SOOOO wide angle .... strut is on tub center line ;)
*Exchanged picture for a view not so distorted better showing center position.

2 stroke Engine Tech of 30+ years, Prop tweeker, Chronic tinkerholic, Home of Motor Heads RC Racing Engines ...
8 time NAMBA National 6 lap heat racing record holder.
#15289

Please Log in or Create an account to join the conversation.

Scott replied the topic: Re: MGB Warpath ... Gas Rigger / rigging and set up info

About finished up with the rigging.

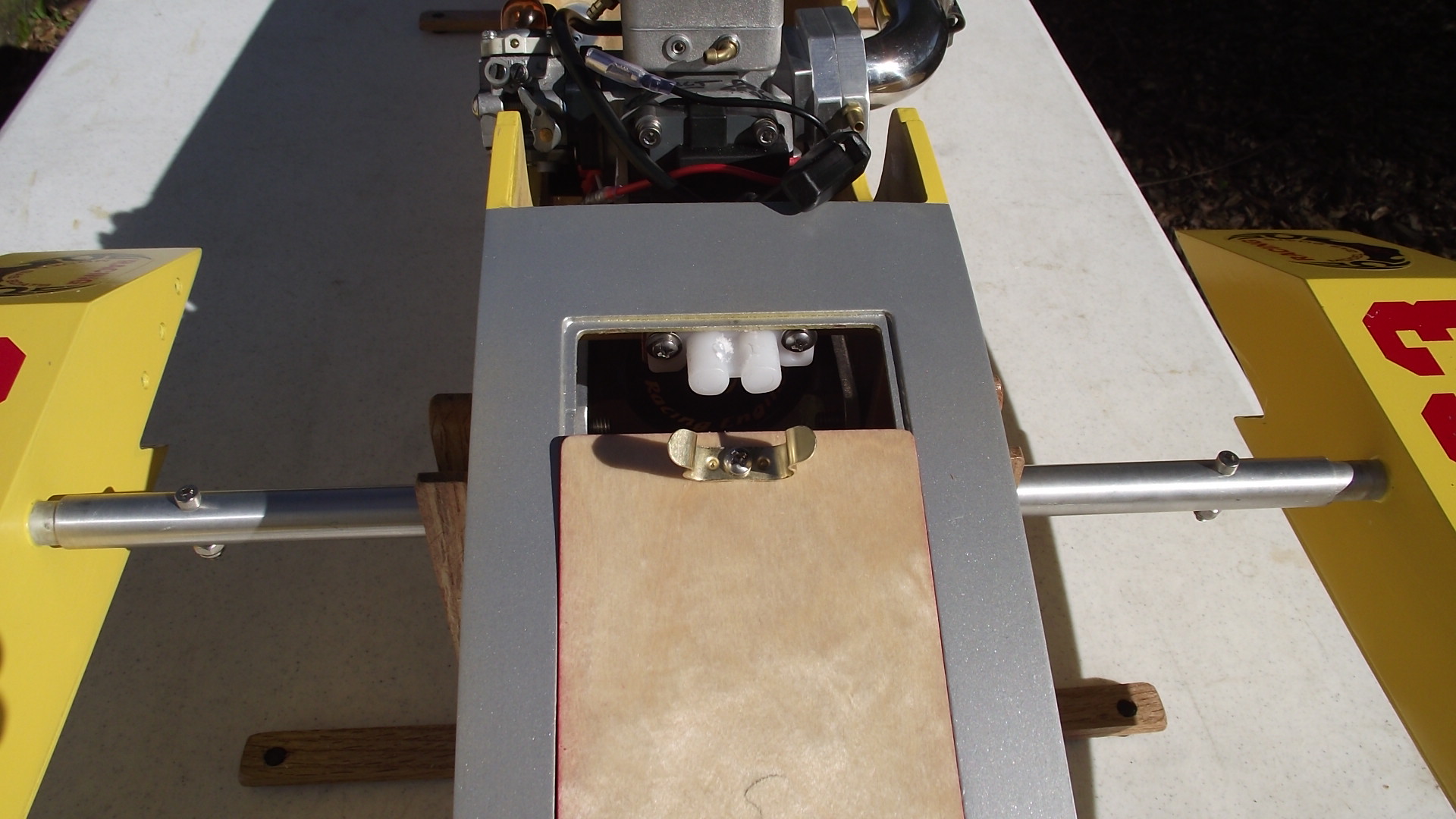

Front tank compartment lid secured with a el'cheepo cabinet latch.
Screw threw lid will get a small knob for ease in opening and serve as a catch hook for retrieve ball :blush:

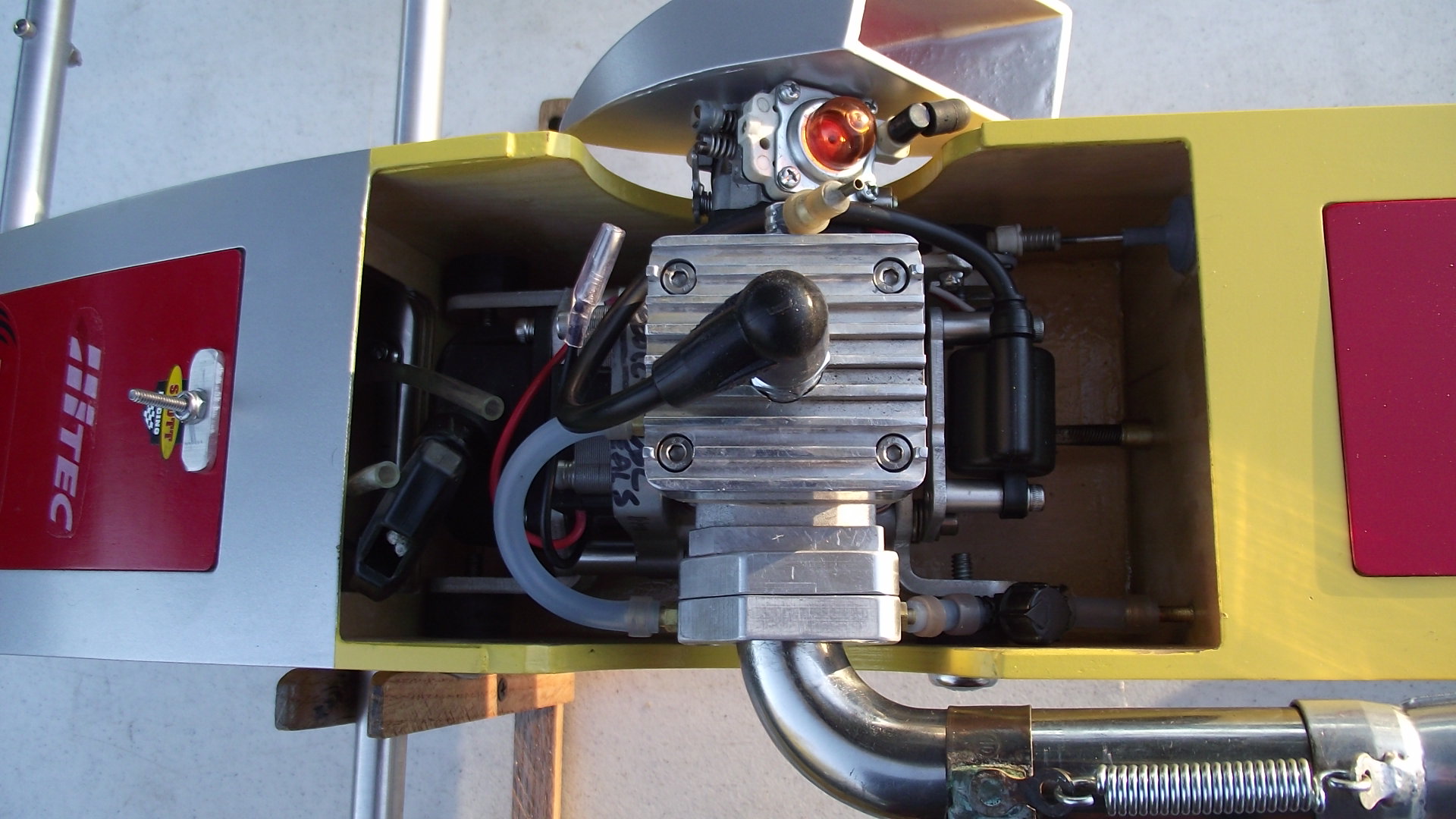

Found out that exhaust routing was a tad tight clearing tubs side and had to fabricate a 1/4" standoff so pipe clearance was better. ( This issue likely because of engine / early R254 cylinder combo ) Pipe an internal stinger "Hot Pipe" with a 1" head pipe and one off spring retainer.
Due to the tight engine compartment and using square drive cable have placed the secondary coil on PTO side. Cooling water taken threw Exhaust manifold first then into cylinder and out off the cylinder cap.

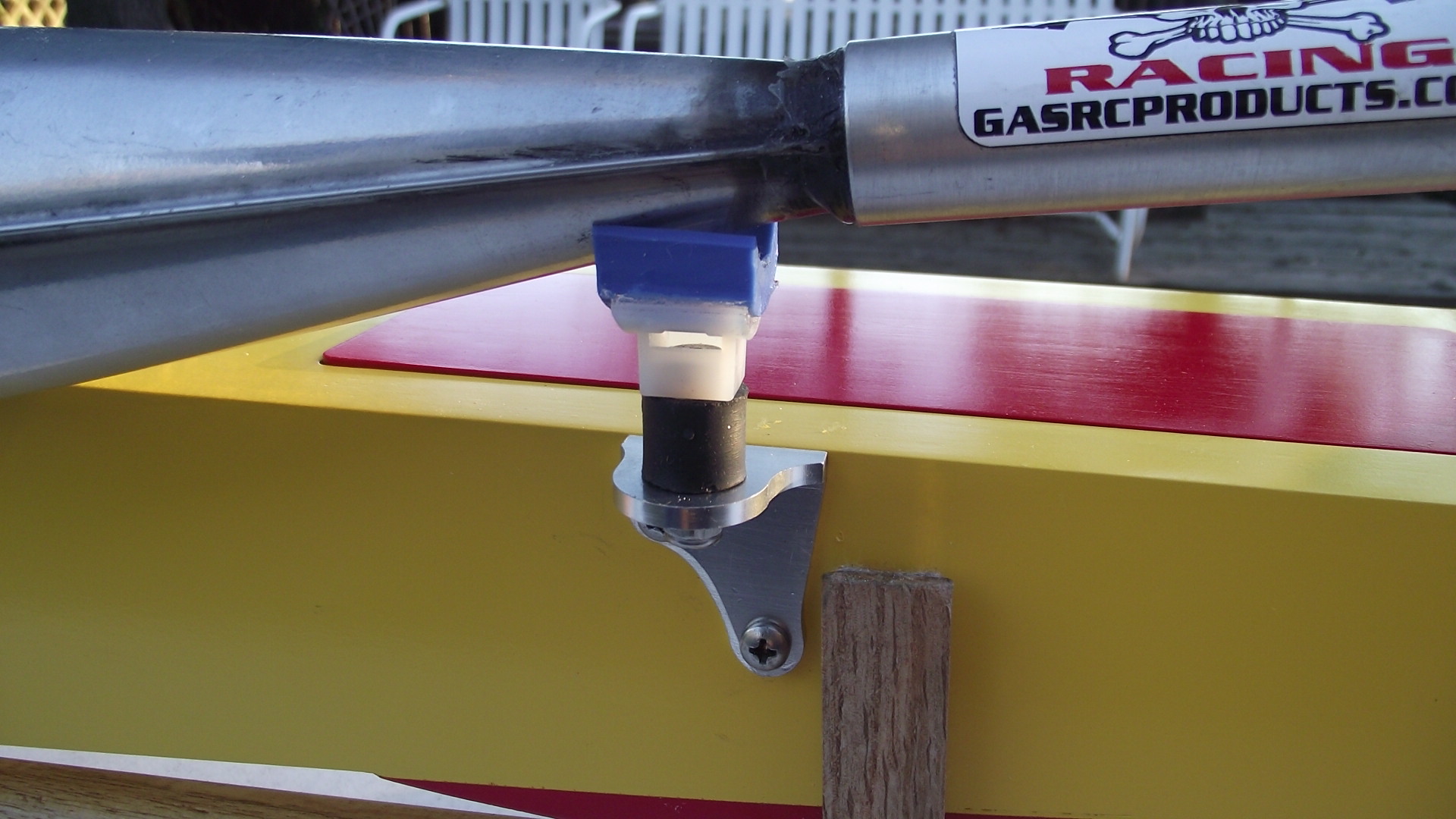

Pipe mount gets a zip tie in a piece of silicone tubing & a/v mount will be slightly flexed forward when tie is tightened down.

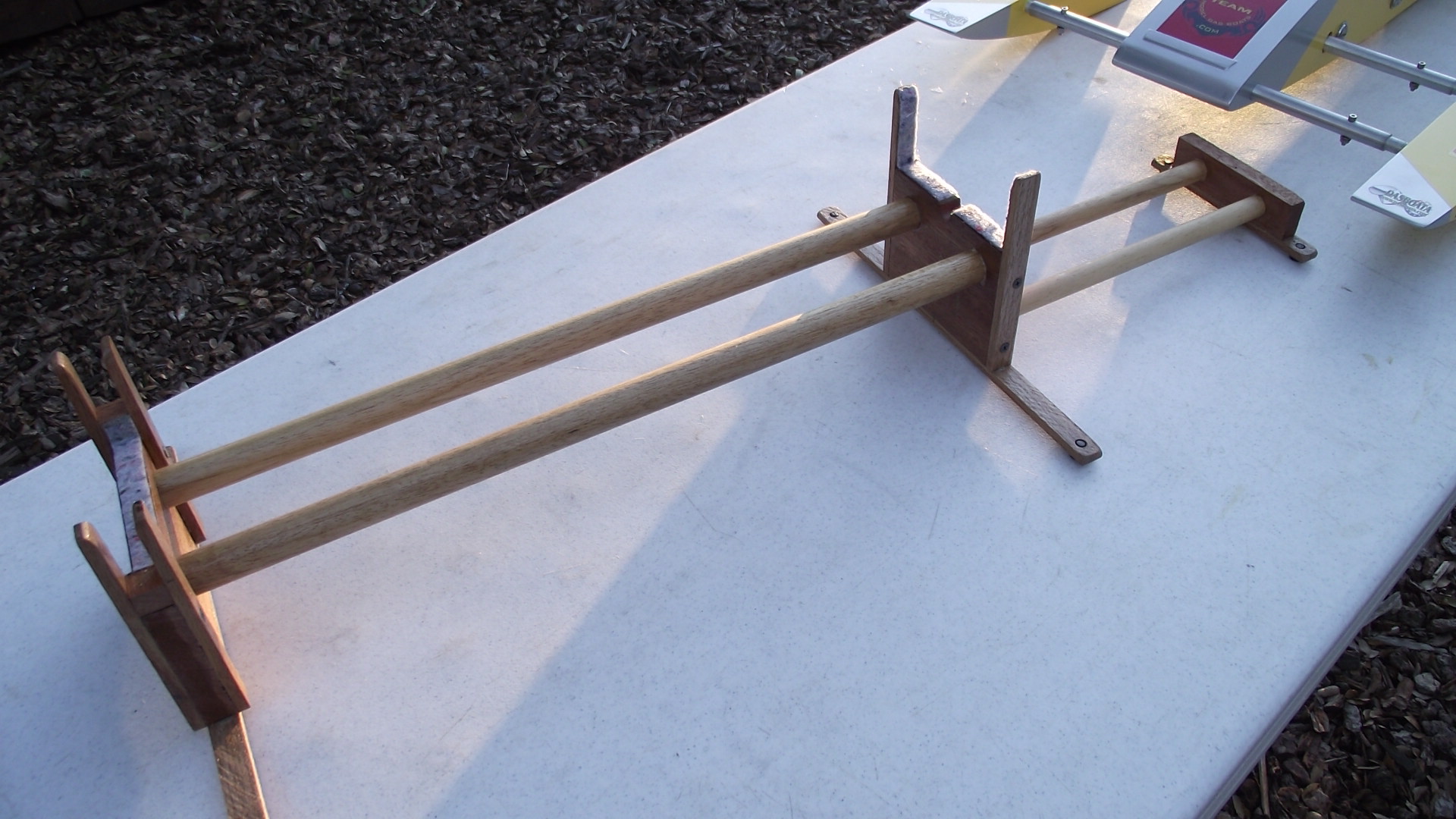

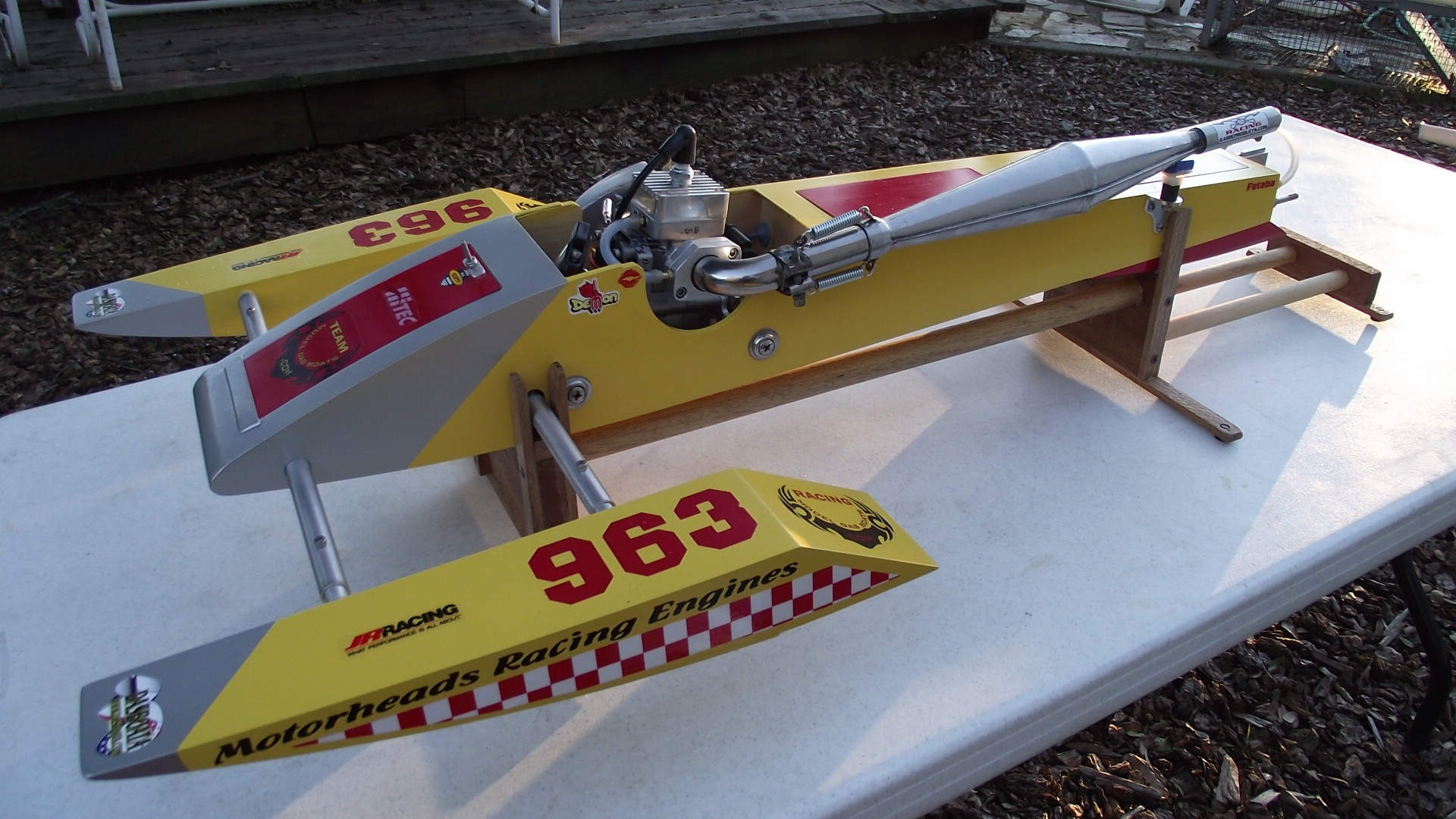

Custom wood stand built from 1" and 3/4" doweling glued and screwed together, parts cost @ $10 and a couple hours time.



98% done needing radio box linkage & set up done, turn fin sharpening and fitment, fuel line/fill hoses attached.

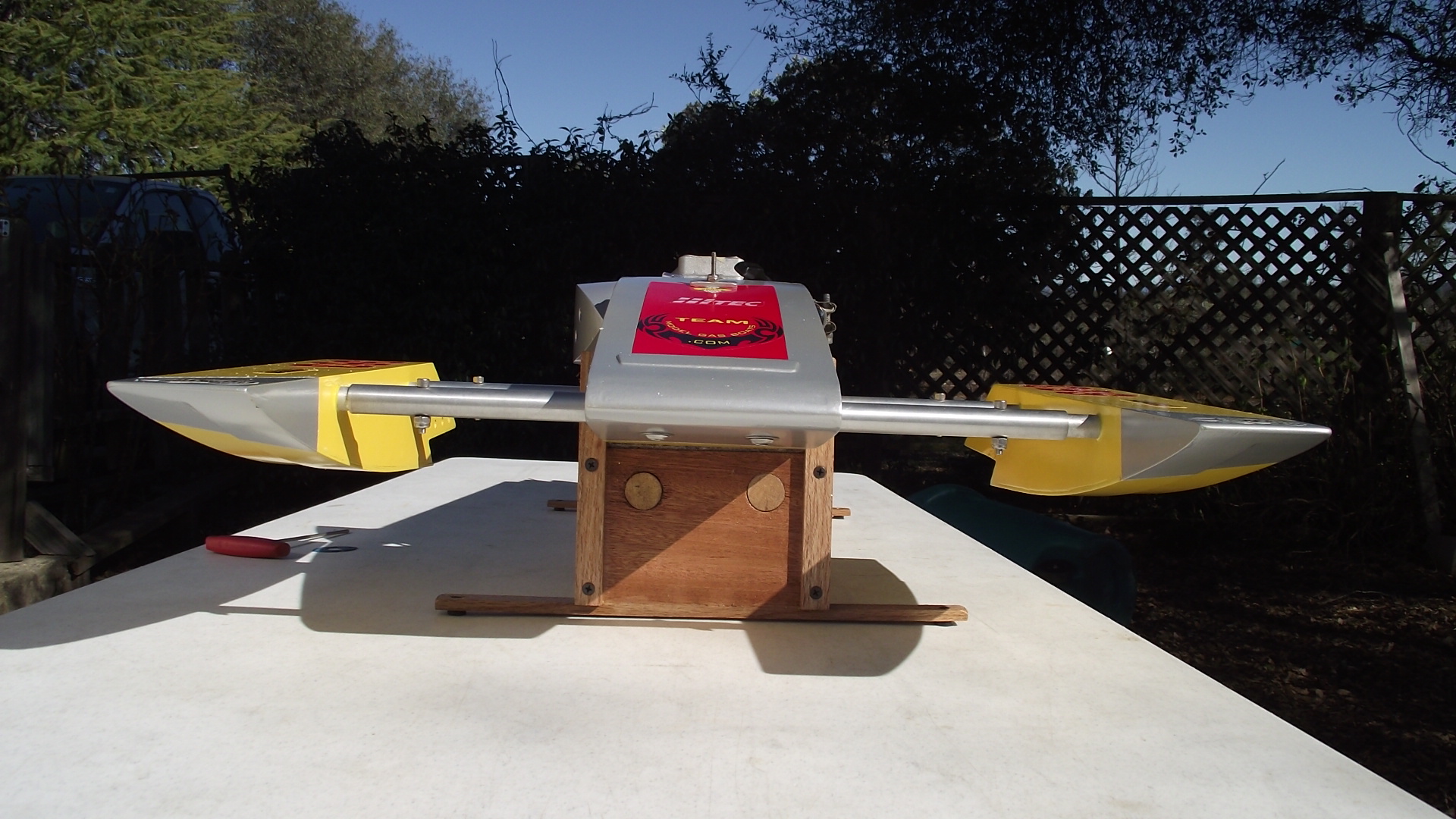

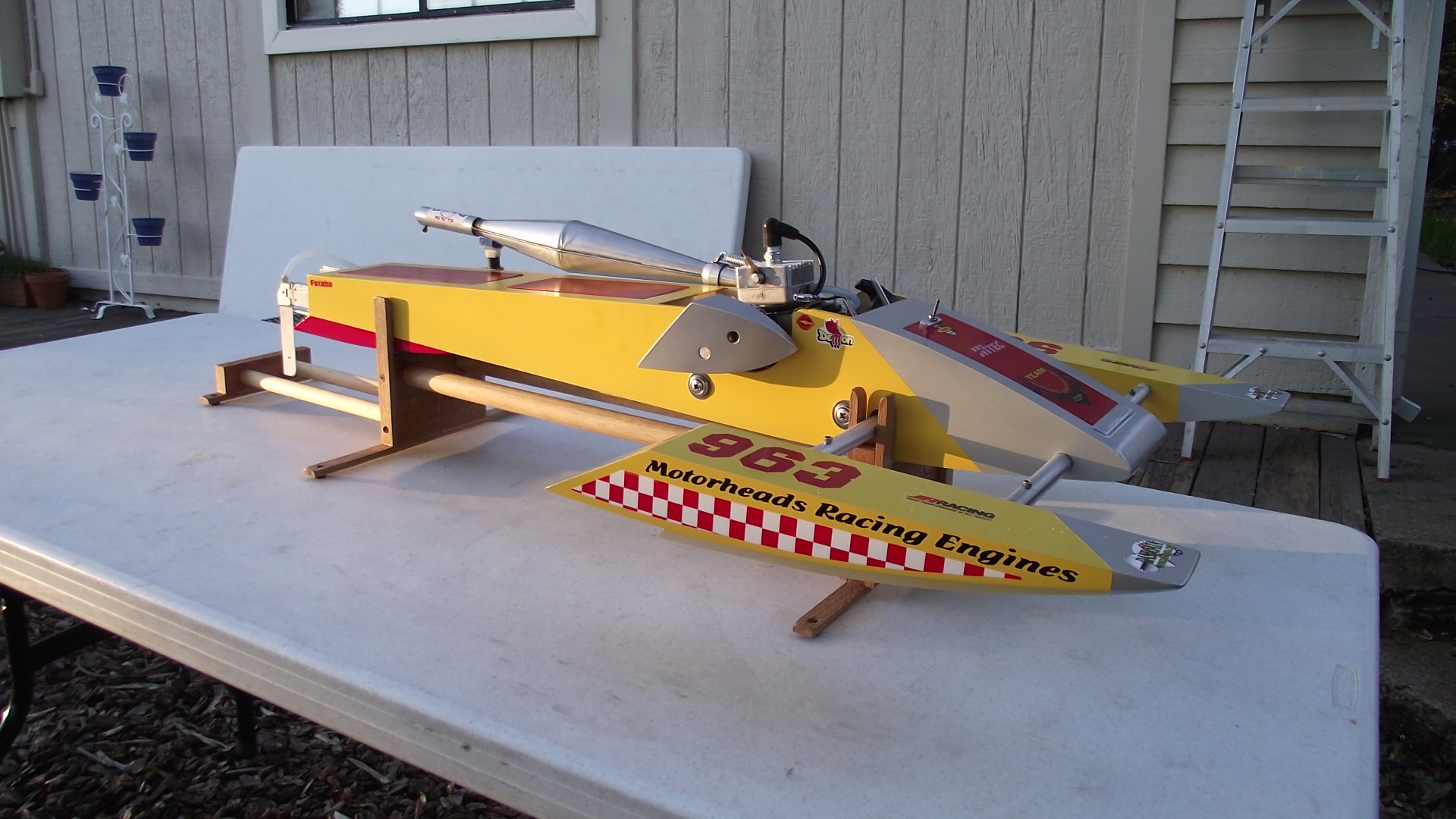

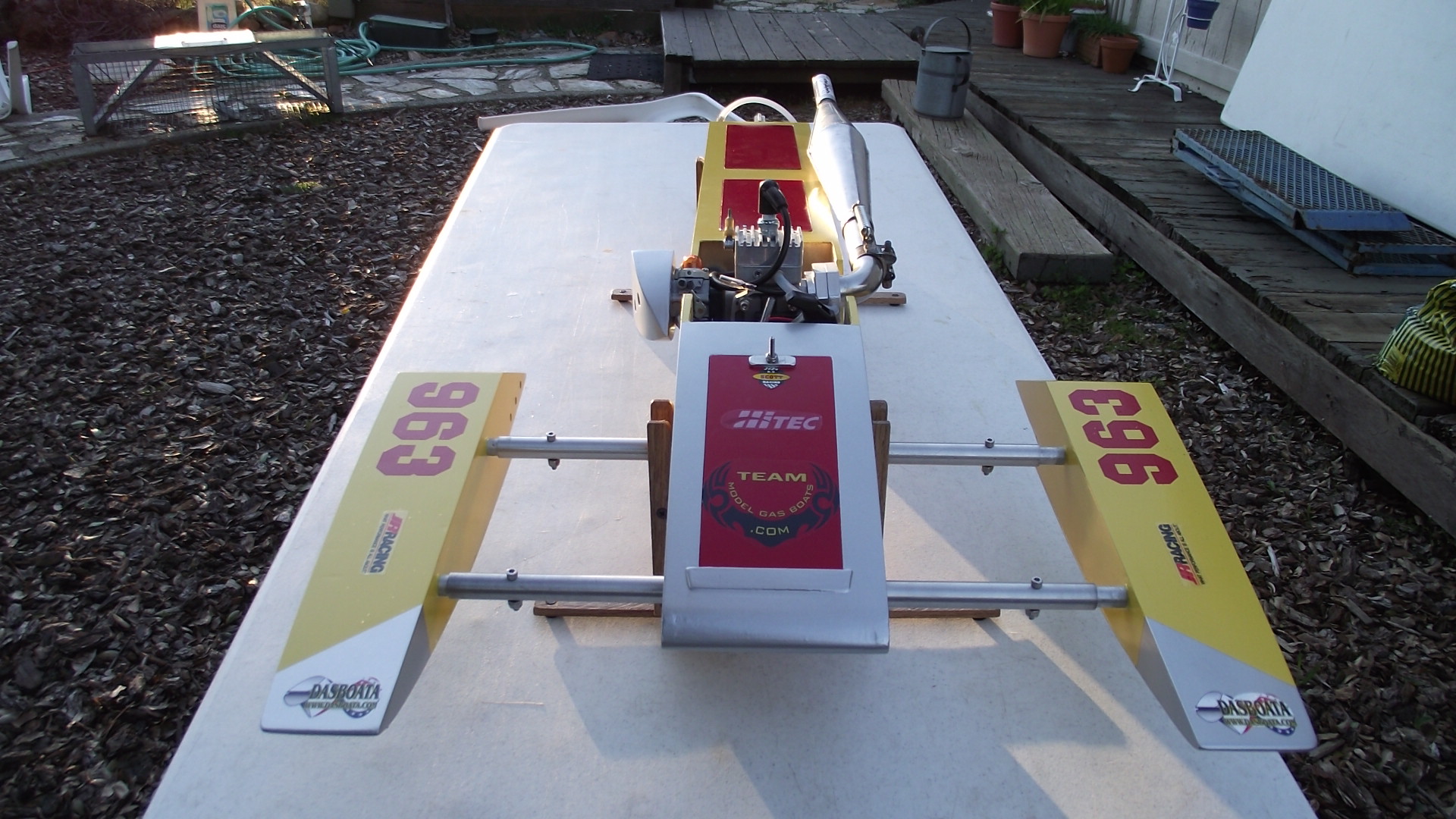

Balance of pictures some random shots sharing the fit & finish details .... Nothing fancy here, this is a RACE Boat !









That's it for now ....

2 stroke Engine Tech of 30+ years, Prop tweeker, Chronic tinkerholic, Home of Motor Heads RC Racing Engines ...
8 time NAMBA National 6 lap heat racing record holder.
#15321

Please Log in or Create an account to join the conversation.

twohottyracing replied the topic: Re: MGB Warpath ... Gas Rigger / rigging and set up info

scott
that is looking very sweet!!!!!!!!!!!!!!!!!!!!!
could the carb cover be made to mount right to the tub???or is it to short?(outwards),great job,cant wait for some video!!!!!!
scotty
#15324

Please Log in or Create an account to join the conversation.

INEEDSPOTS replied the topic: Re: MGB Warpath ... Gas Rigger / rigging and set up info

looks good Scott. Got strut & rudder mounted on mine... should have it complete and ready for testing by next week.

Team COR-TROL Racing - The NETWORK

IMPBA Twin LSG Rigger 1/3 Mile 2-Lap National Record Holder
IMPBA OFFICIAL 12 sec lap 1/3 mile Gas Cat
IMPBA OFFICIAL 75+mph SAW Gas Cat

CC Racing Engines.. Shocker Propworks
#15326

Please Log in or Create an account to join the conversation.

Scott replied the topic: Re: MGB Warpath ... Gas Rigger / rigging and set up info

Scotty,

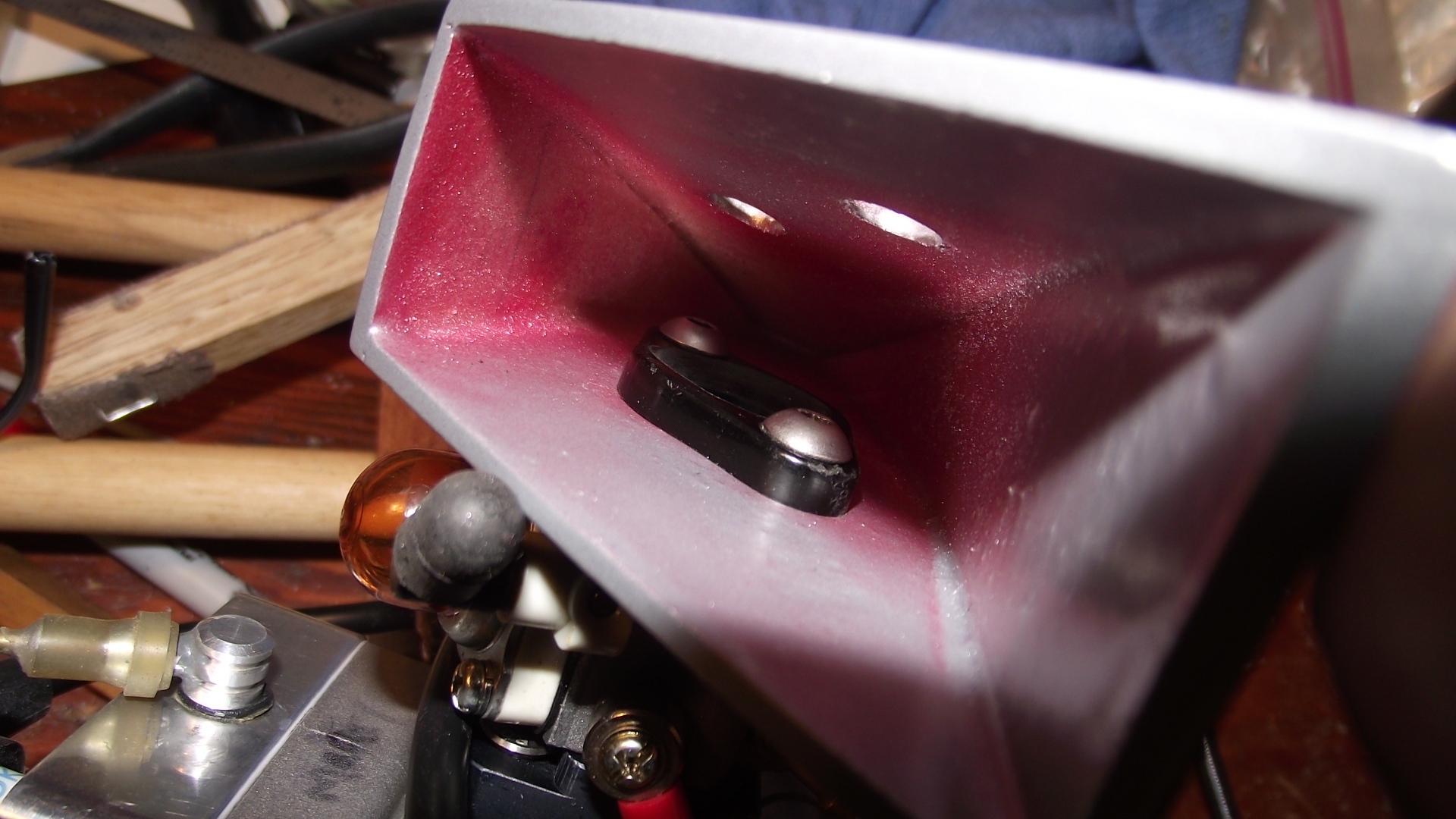

Yes some sort of tub attached air deflector could be done but would need some sort of hinged roof so engine could be lifted up and out of the compartment.
Do note that engine fitted is running one of the really short M&D intake manifolds so a conventional manifold would be placing carb a lot further outward ( Actually @ 5/16" or so ) That would make the hump on side of tub pretty large ... & Ugly.
Think so long as engine used has an aluminum intake manifold fitted the weight of the air deflector further shaking the carb won't be an issue.
* Did however cut down a Zenoah stock spit tube, bore it out bigger and belled the intake edges so wood crush by carb screws would be better distributed and hopefully less.



Will,
Add some pictures of your Warpath rigging so we can see other ways in doing so :cheer:

2 stroke Engine Tech of 30+ years, Prop tweeker, Chronic tinkerholic, Home of Motor Heads RC Racing Engines ...
8 time NAMBA National 6 lap heat racing record holder.
#15333
Attachments:

Please Log in or Create an account to join the conversation.
